(source of pictures in this article: ebay/Kyosho/Samsung/Google)
Applicable to MR 02, MR 02 EX, MR 03, MR 03 tikitiki, AWD 010, AWD 015, AWD 15 tikitiki, F1, F1 015 tikitiki, dNano and VE.
Designed for Android OS device.
Buy the BT Programmer on ebay or directly on producer´s email.

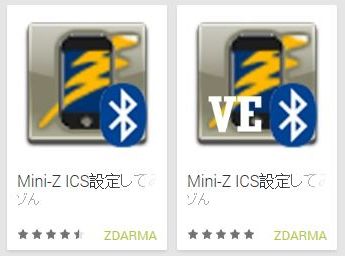

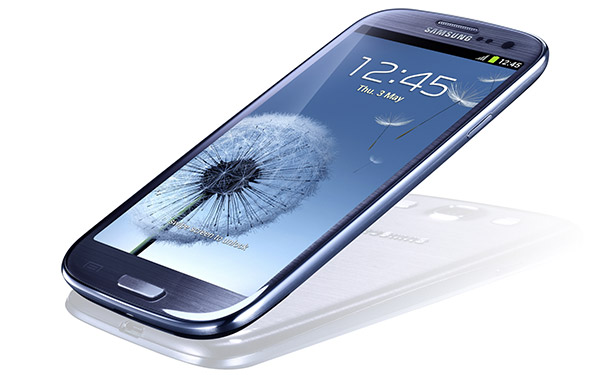

Download corresponding sw: Android applications to your Android device (for ex.phone Samsung Galaxy S3).
Select Normal or VE sw version MiniZ ICS BT 1.x according to your chassis electronics.
Before download, Google will ask you to register (if you are not yet) or Sign-in to the Google applications.
Next steps directly on car: 1. Insert batteries to your Mini-Z chassis

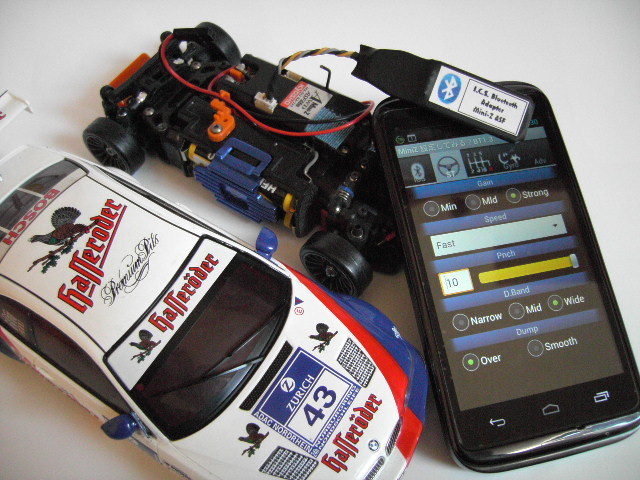

2. Connect BT programmer to the Mini-Z connector
3. Activate Bluetooth on your Android device
4. Push and keep the pairing button and switch ON the car
5. Liberate pairing button => red LED on BT programmer is blinking
6. In first use of BT programmer, found on your Android device: SetUp – Wireless connection – SetUp Bluetooth – Search device.
7. Pair BT programmer and your Android device together, code 1234
8. Start program MiniZ ICS BT 1.x
9. Link with of Android device with chassis will start automatically => red LED on BT programmer lights continuously.
10. Now possible to read data from chassis, modify it, store it.
11.Switch off the car´s ON/OFF button. Start your transmitter, switch ON the car. Now you can run with new electronics set up. BT programmer can stay on board, but it is non-working.
12.If you want change again the electronics set up, repeat points 1-5 and 8-11.

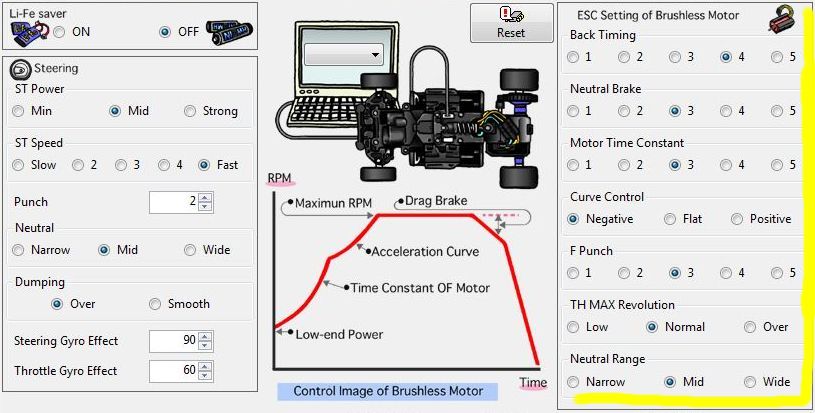

Here is MR-03VE example of Android screens with equivalent MR-03VE-Manager screen:

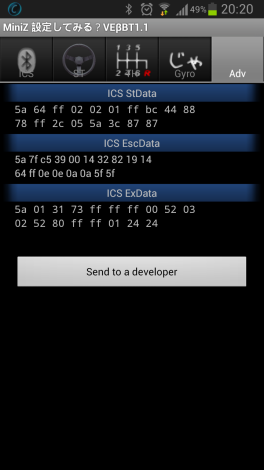

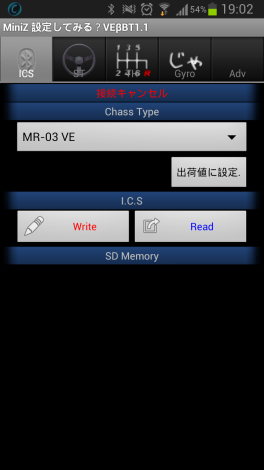

...Chassis type, Write/Read...

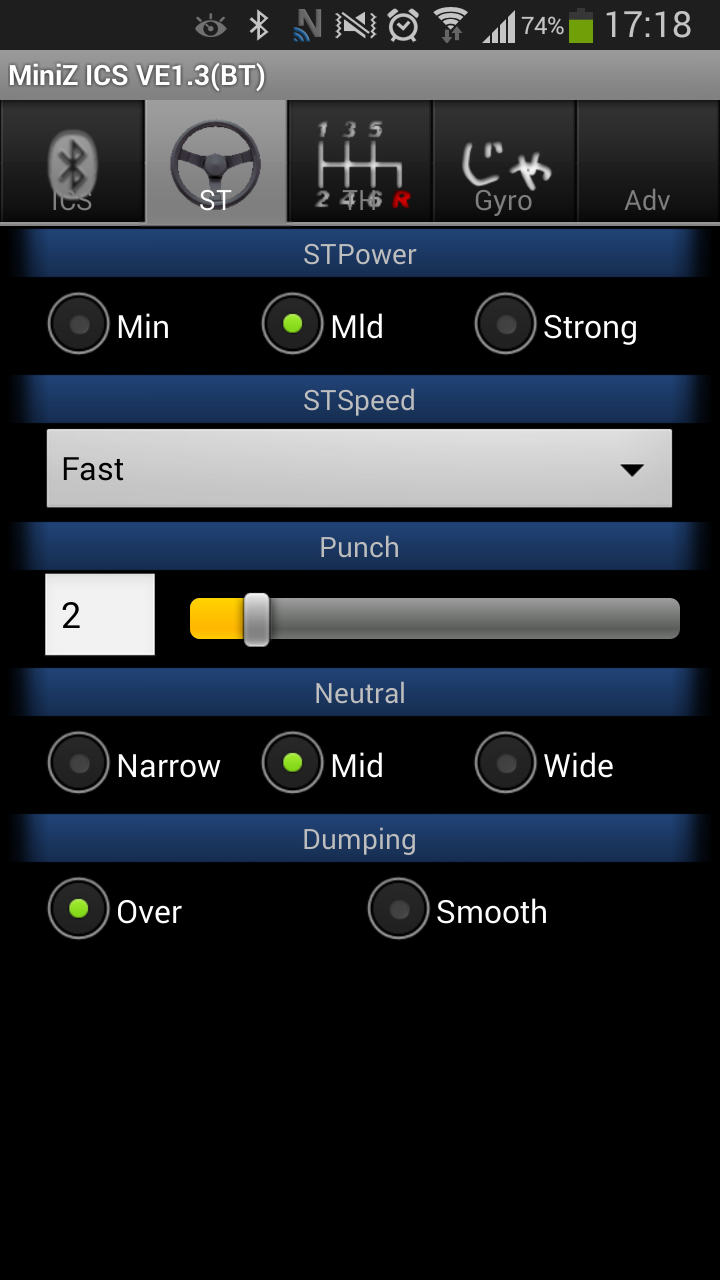

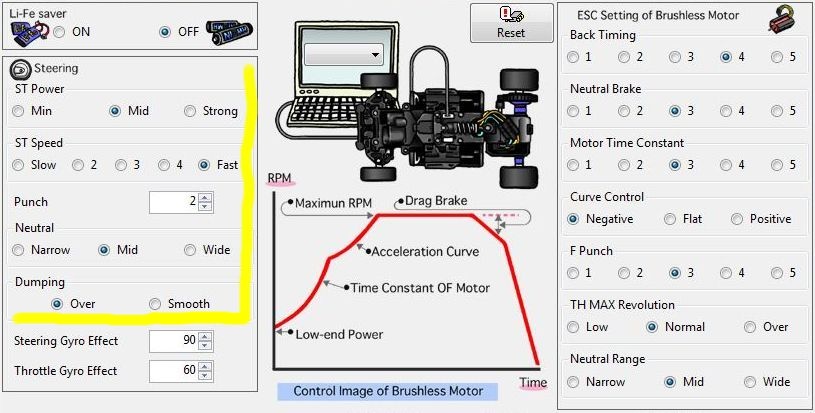

...Steering set up...

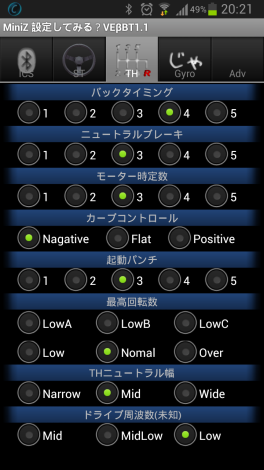

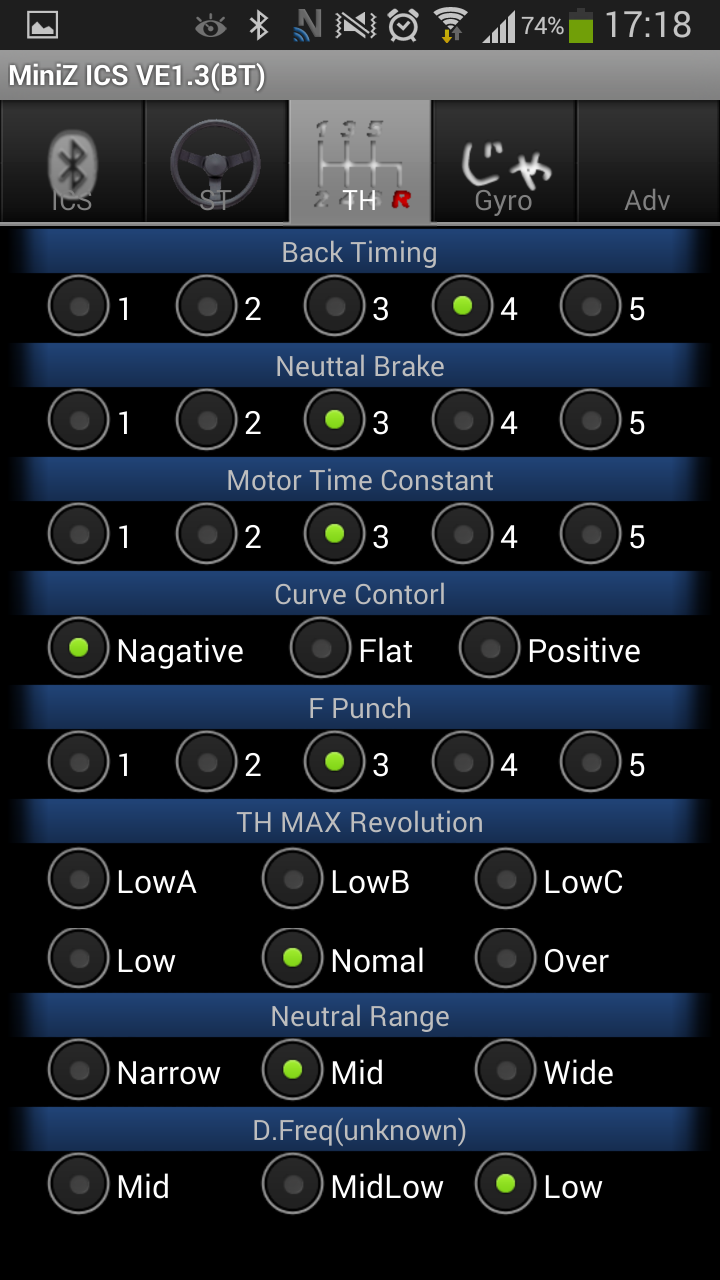

...Throttle set up...

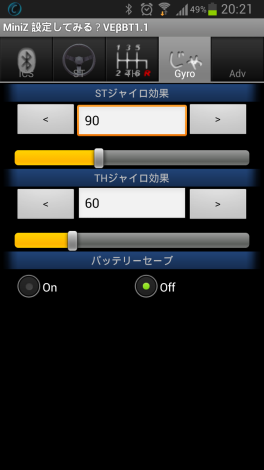

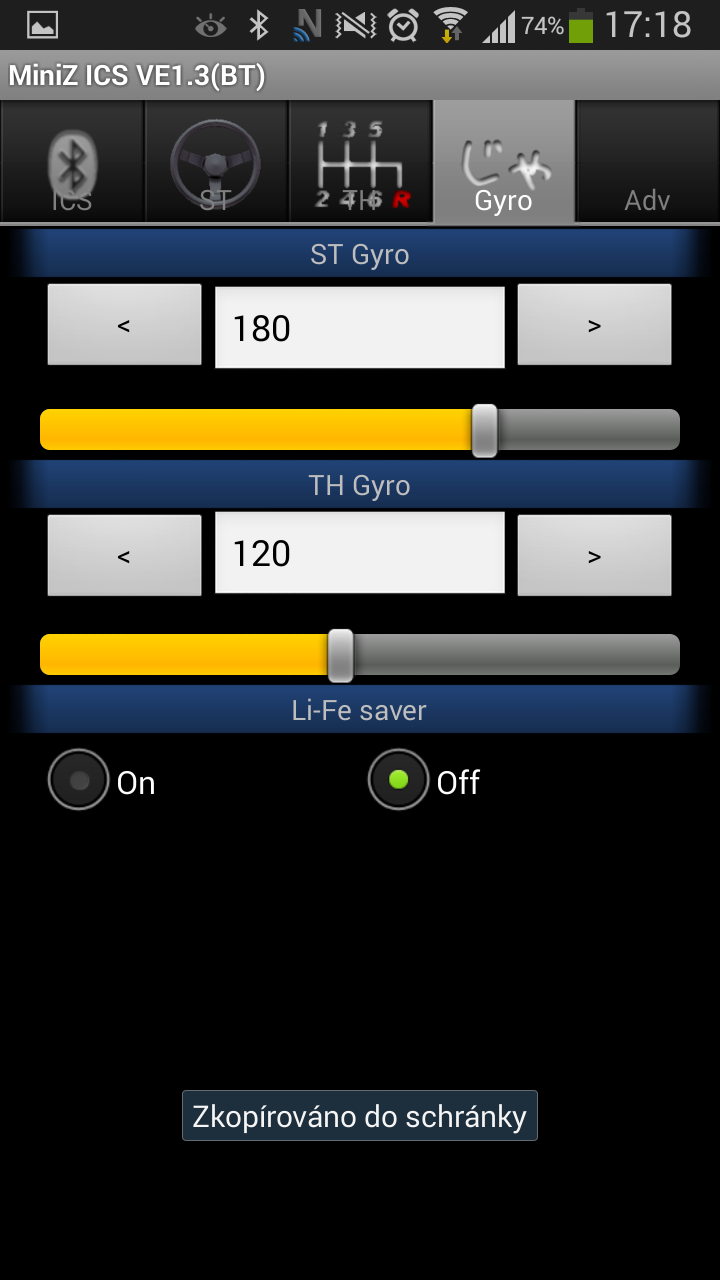

...Gyro, LiFe On/Off...
Strong points of BT Programmer:
No installation CD necessary.
It works with all OS Android device (phones, tablets, netbooks).
Small Android device is practical, you can always have with you on mini-z races.
Very fast operation espetially with mobile-phone.
Available sw for VE electronics and also for normal electronics. According explanation of producer BT programmer was successfully tested with next mini-z chassis: MR 02, MR 02 EX, MR 03, MR 03 tikitiki, AWD 010, AWD 015, AWD 15 tikitiki, F1, F1 015 tikitiki, dNano and VE.
Thanks to bluetooth connection, the BT Programmer can stay on board of the car (but of course not fonctionnal) during your set up tests, only necessary before each set up to re-pair car with Android (car must be in programming mode, at this moment the high-frequency part of electronics is disconnected).
...Chassis type, Write/Read...
...Steering set up...
...Throttle set up...
...Gyro, LiFe On/Off...
